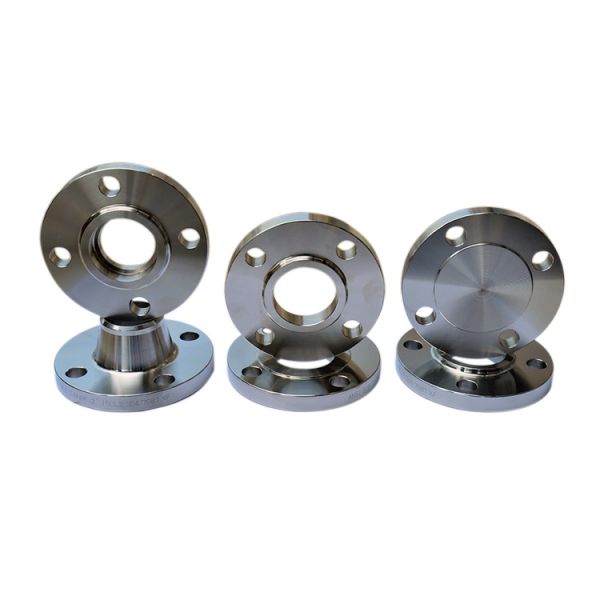

Product Description:
FLANGE ANSI B16.5 ASME B16.47 is a kind of pipe flanges which is
widely used in various industries. It is a kind of product with
high quality, durability, safety and reliability. The material of
this product is carbon steel, stainless steel and alloy steel. It
is made by forging process with pressure rating ranging from
CLASS150 to CLASS2500. The coating is BLACK PAINT and the available
size is from 1/2"-80", 3/4", 1", 11/4", 11/2", 2", 21/2". It is
especially suitable for A182 F304/304L FLANGE, A105N FLANGE, 150LBS
FLANGE and other flanges. This product can meet the requirements of
different customers and provide reliable support for many
industries.
Features:
- Product Name: FLANGE ANSI B16.5 ASME B16.47
- Connection Type: WELDING
- Coating: BLACK PAINT
- Pressure Rating: CLASS150-CLASS2500
- Face Type: RF, RTJ.Black Paint, Yellow Paint, transparent Paint,
Cold And Hot Dip Galvanize
- pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
- Keywords: A105N FLANGE, 150LBS FLANGE, A105 FLANGE, WELD NECK
FLANGE, BLIND FLANGE, SLIP ON FLANGE, THREADED FLANGE
Technical Parameters:
| Parameter | Value |
|---|
| Product Name | A105N FLANGE, ANSI B16.5 FLANGE, A105N FLANGE, ASME B16.47 FLANGE |
| Size | 1/2"-80", 3/4", 1", 11/4", 11/2", 2", 21/2" |
| Technics | Forged |
| Pressure | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Pressure Rating | CLASS150-CLASS2500 |
| Connection Type | WELDING |
| Customization | OEM, ODM |
| Face Type | RF, RTJ.Black Paint, Yellow Paint, transparent Paint, Cold And Hot
Dip Galvanize |
| Coating | BLACK PAINT |
| Material | Carbon Steel, Stainless Steel, Alloy Steel |
Applications:
XF ANSI B16.5 ASME B16.47 Flange is a professional brand of flange
made of carbon steel, stainless steel and alloy steel for the
connection of pipelines. It is widely used in the connection of
pipelines for conveying water, oil, gas and steam. XF ANSI B16.5
ASME B16.47 Flange provides high-quality A105 flange, weld neck
flange, ANSI B16.5 flange and ASME B16.47 flange. It has a variety
of face types, such as RF, RTJ, black paint, yellow paint,
transparent paint, cold and hot dip galvanizing. It also has a
pressure rating of Class 150-Class 2500. It is available in a
variety of colors, including black paint and yellow paint, and can
also be customized according to customer requirements. It is
guaranteed to meet the requirements of ISO9001.PED certification,
with a minimum order quantity of 1 Ton, and a delivery time of
15-45 days. The price is negotiable, and the package is standard
export seaworthy package or as required, with a supply capacity of
1000-5000 TONS/MONTH.
Packing and Shipping:
The packaging and shipping for FLANGE ANSI B16.5 ASME B16.47
includes:
- All flange orders are thoroughly inspected prior to shipment.
- The flanges are individually wrapped in plastic to prevent
corrosion.
- The flanges are then placed in heavy-duty cardboard boxes for
protection during transit.
- The boxes are then secured on wooden pallets for shipping.
- The pallets are then shrink-wrapped to ensure no damage occurs
during transit.
FAQ:
- Q1: What is the brand name of this ANSI B16.5 ASME B16.47 flange?
A1: The brand name of this flange is XF. - Q2: What is the model number of this ANSI B16.5 ASME B16.47 flange?
A2: The model number of this flange is ANSI. - Q3: Where is this ANSI B16.5 ASME B16.47 flange manufactured?
A3: This flange is manufactured in China. - Q4: What is the minimum order quantity of this ANSI B16.5 ASME
B16.47 flange?
A4: The minimum order quantity of this flange is 1 Ton. - Q5: Does this ANSI B16.5 ASME B16.47 flange have ISO9001.PED
certification?
A5: Yes, this flange has ISO9001.PED certification.
